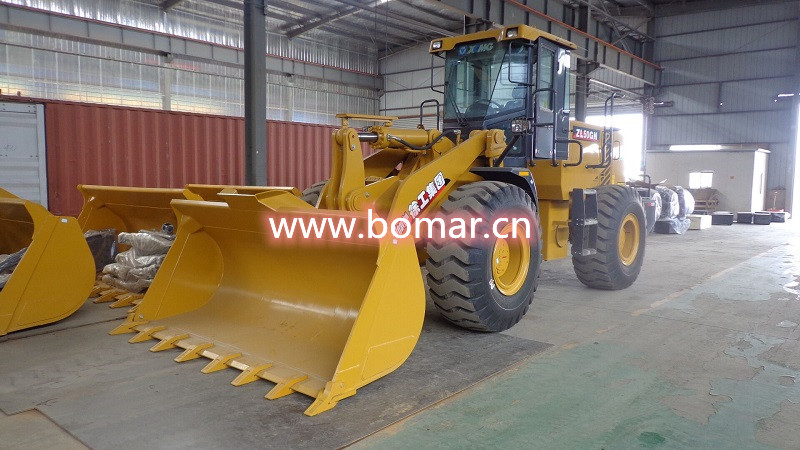

XCMG Wheel Loader ZL50GN Main Specifications:

Item	Parameters
Rated operating load	5000 KG
Bucket capacity	2.5~4.5 cbm
Machine weight	17500±300 KG
Dump clearance at maximum lift	3100~3780 mm
Reach at maximum lift	1100~1220 mm
Wheel base	3300 mm
Tread	2250 mm
Max.breakout force	175±5 KN
Max.horse power	160±5 KN
Hydraulic cycle time-raise	≤6 s
Total hydraulic cycle time	≤10.5 s
Min. turning radius over tyres	5925±50 mm
Articulation angle	38
Gradeability	30
Tyre size	23.5-25-16PR
Overall machine dimension L×W×H	8225×3016×3515 mm
Model	WD10G220E21
Rated Power	162 KW
