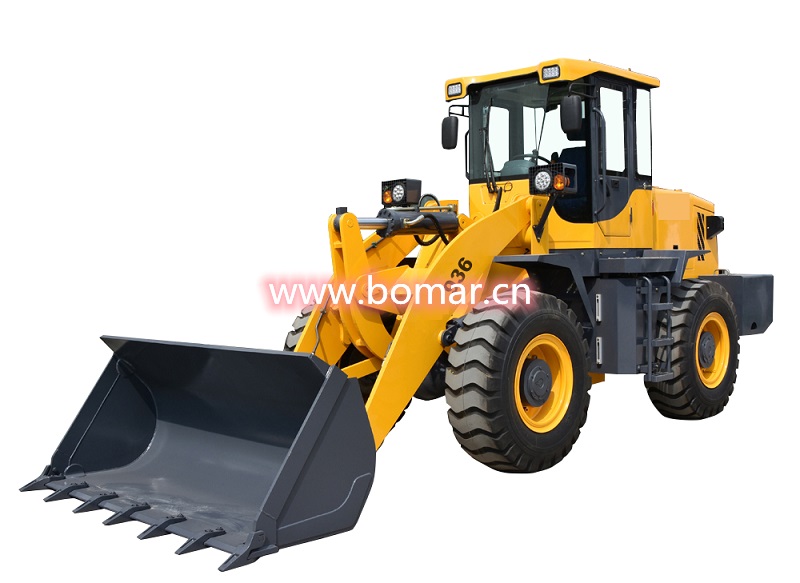

K936 Wheel Loader Main Specifications:
Item | Parameters |
Rated loading | 3000kg |
Overall weight | 9600kg |
Rated bucket capacity | 1.7 |
Maximum tractive force | 97KN |
Maximum breakout force | 127KN |
Maximum grade ability | 30℃ |
Maximum dump height | 3100 |
Maximum dump reach | 1006mm |
Overall dimension (L×W×H) | 6890×2430×3070mm |
Minimum turning radius | 5097mm |
Engine Power | 97kW |
Maximum speed | 40km/h |
Main reducing mode | Bevel gear grade lreduction |
Decelerating mode | Bevel gear grade lreduction |
Wheel base (mm) | 2660mm |
Wheel tread | 1800mm |
Ground clearance | 400mm |
Tyre | 17.5-23.5 |
