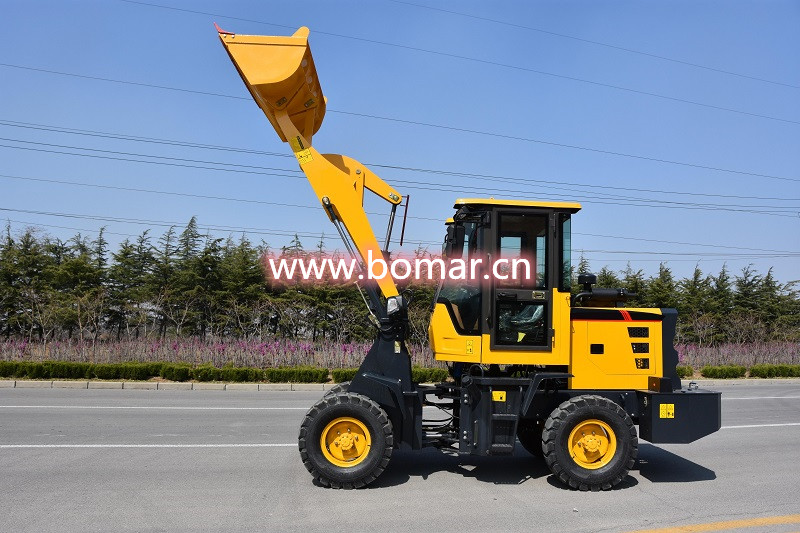

ZL10F Mini Wheel Loader:
Huichai 490G Diesel Engine (38kW), Single joystick mechanical pilot control, 130 transmission, ISUZU type axles
Optional attachments : quick hitch, pallet fork, wood/grass grapple, snow blade/bucket, road sweeper, 4-in-1 bucket, Option Engine: Quanchai Engine, Yunnei Engine 42kW
ZL10F Wheel Loader Main Specifications:
Item | Parameters |
Rated Load | 1000 kg |
Total Weight | 3000 kg |
Rated Bucket Capacity | 0.5 m3 |
Max. Breakout Force | ≥ 48 KN |
Max. Climving degree | 30° |
Dumping Height | 3159 mm |
Dumping Reach | 840 mm |
Dump Time | 3.5 s |
Boom fall Times | 3 s |
Overall Dimensions (L x W x H) | 5510*1845*2800 mm |
Bucket dimensions | 1845*830*420mm |
Min. Turning Radius | 3950 mm |
Model | Huchai 490G Diesel Engine |
Rated Power | 38Kw |
Rated Speed | 2400 rpm |
Model of Axle | ISUZU type Drive Axle |
Wheel Tread | 1395 mm |
Wheel Base | 2140 mm |
Drive type | 4-WD Hydraulic transmission |
Fuel Tank Capacity | 70 L |
Brake type | Drum Brake |
