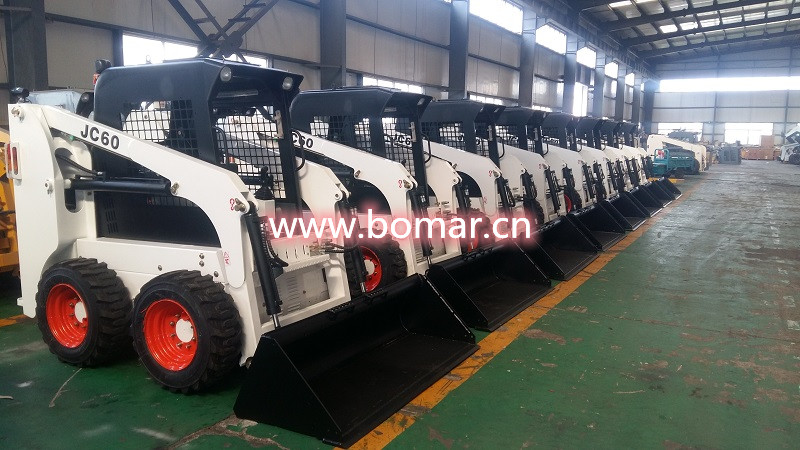

Model | JC60 |
Rated operating capacity(kg) | 850 |
Tipping load (kg) | 1700 |
Bucket capacity(m3) | 0.5 |
Hydraulic pump flow (L/min) | 75 |
Engine power (kw) | 45 |
Weight(kg) | 3240 |
Max travel speed (km/h) | 12 |
Grade ability | 20 |
Tire | 12-16.5 |
Fuel/hyd oil capacity (L) | 80/80 |
Height at maximum extension | 4000 |
Hinge pin height (mm) | 3100 |
Total height (mm) | 2160 |
Length with bucket (mm) | 3490 |
Length without bucket(mm) | 2750 |
Width with bucket (mm) | 1880 |
Track width (mm) | 1500 |
Wheelbase (mm) | 991 |
Ground clearance (mm) | 205 |
Dumping angle | 40 |
Dumping height (mm) | 2400 |
Maximum reach (mm) | 750 |
