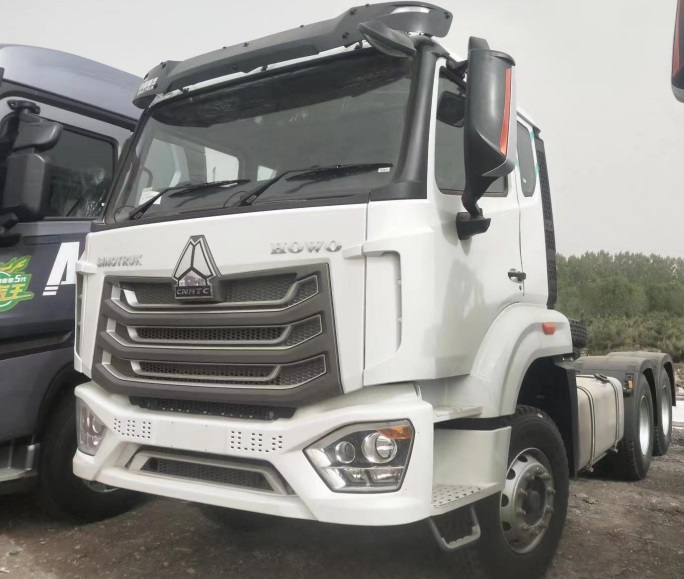

HOWO Tractor Head ZZ4257N3241W

Chassis Model

ZZ4257V3247B1

Driving Type

Left Hand Driving

Production Year

2023. New truck

Cabin

HW76, With one sleepers and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber

Engine

Diesel 4-stroke direct injection diesel engine

Engine Model:WP12.430E201,430HP

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement:11.596 L

Transmission

HW19712, 12F & 2R.
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

BOSCH

Front Axle

VGD95, 1x9500 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:4.8

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension: 9 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12.00R20, radial tires with one spare tire.

Fuel Tank

400 L

Fifth Wheel

90#

Overall Dimension

7000x2550x3100 mm
