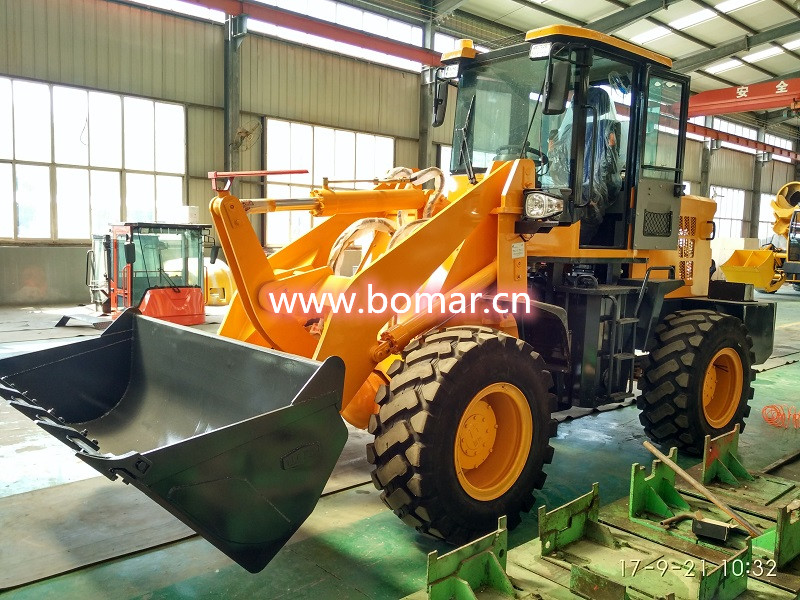

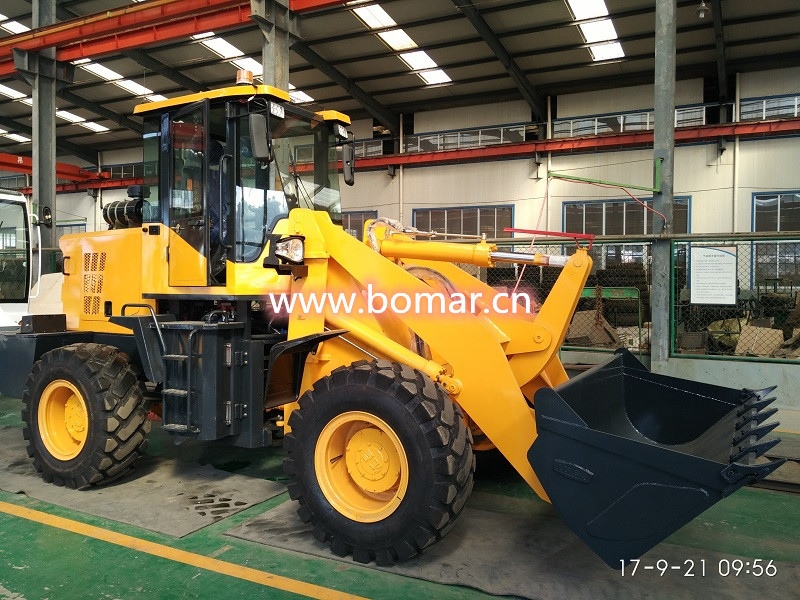

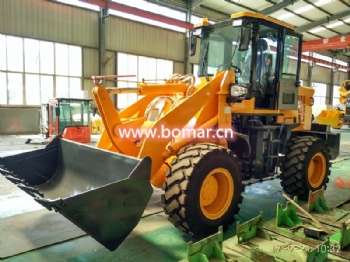

Wheel Loader ZL927

Rated loading

2700kg

Overall weight

6500kg

Rated bucket capacity

1.2m3

Maximum tractive force

≥58KN

Maximum breakout force

≥55KN

Maximum grade ability

30℃

Maximum dump height

3800mm

Maximum dump reach

780mm

Overall dimension (L×W×H)

6620×2200×3000mm

Minimum turning radius

4750mm

Model

Yunnei four cylinder type 4102 type 76kw

Type

lnline water cooled, four stroke

Rated power

76kw

Torque converter

290

Gearbox mode

Countershaft power-shift

Gear shift

2 forward shift  2 reverse shift

Maximum speed

25km/h

Main reducing mode

Circular Arc Bevel gear, single stage

Decelerating mode

Single stage planetary type

Wheel base (mm)

2250mm

Wheel tread

1640mm

Ground clearance

310mm

System working pressure

16-18MPa

Boom lifting time

4.8s±0.2s

Total time

9.2s±0.5s

Fuel tank capacity

80L

Function of leveling automatically

yes

Service brake

air assist disc brake on 4 wheels

Parking brake

flexible shaft operated external drum

Type specification

16/70—24
