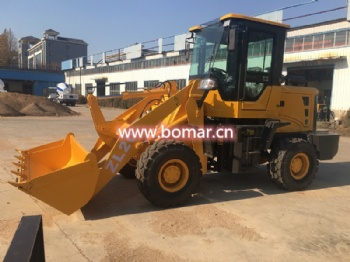

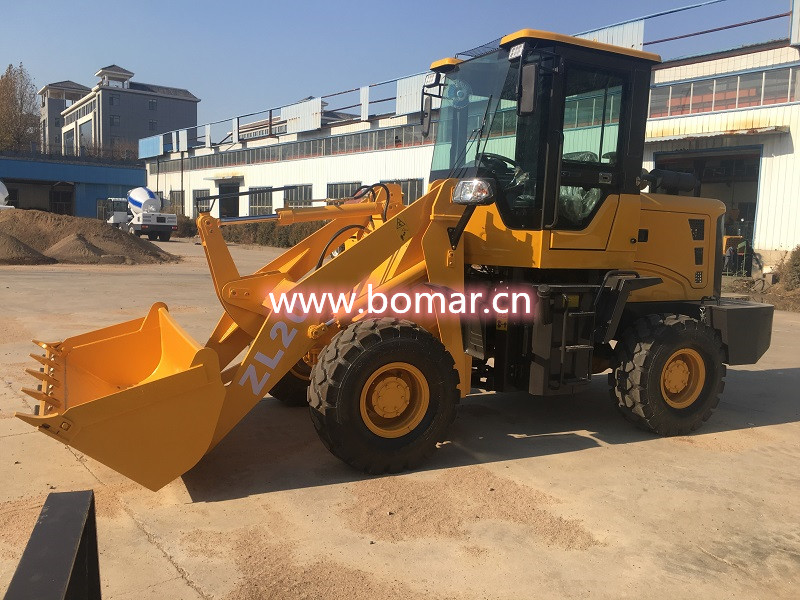

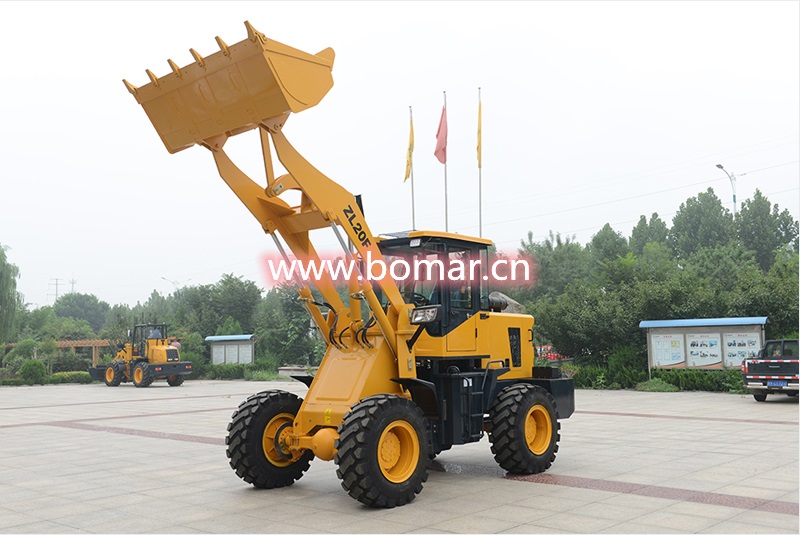

ZL20F Mini Wheel Loader:
Yunnei YN33GBZ Diesel Engine (65kW), Single joystick mechanical pilot control, Hydraulic torque convertor and transmission, Wheel Reducer Axle
Optional attachments : quick hitch, pallet fork, wood/grass grapple, snow blade/bucket, road sweeper, 4-in-1 bucket
ZL20F Wheel Loader Main Specifications:
Item | Parameters |
Rated Load | 2000 kg |
Total Weight | 5000 kg |
Rated Bucket Capacity | 1.0m3 |
Tyre Size | 16/70-20 |
Max. Climving degree | 30° |
Dumping Height | 3300 mm |
Dumping Reach | 900 mm |
Dump Time | 3.5 s |
Boom fall Times | 3 s |
Overall Dimensions (L x W x H) | 5850*2000*2900 mm |
Bucket dimensions | 2000*830*420mm |
Min. Turning Radius | 3000 mm |
Model | Yunnei YN33GBZ Diesel Engine |
Rated Power | 65Kw |
Rated Speed | 2400 rpm |
Model of Axle | Wheel Reducer Axle |
Drive type | 4-WD Hydraulic transmission |
Fuel Tank Capacity | 70 L |
Brake type | Drum Brake |
